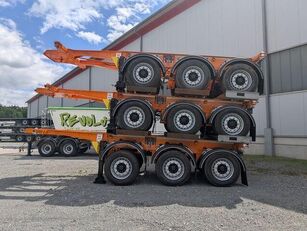

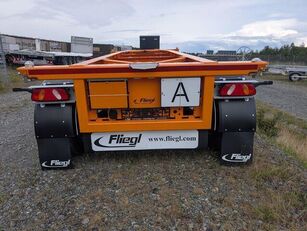

New Fliegl SDS 380 container chassis semi-trailer
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
34,840 kg
Net weight
3,160 kg
Germany, Triptis
33,020 kg
Net weight
4,983 kg
Germany, Triptis
34,890 kg
Net weight
31,110 kg
Germany, Triptis
33,340 kg
Net weight
4,660 kg
Germany, Triptis
34,200 kg
Net weight
3,800 kg
Germany, Triptis
33,000 kg
Net weight
5,000 kg
Germany, Triptis
33,500 kg
Net weight
4,500 kg
Germany, Triptis
34,900 kg
Net weight
3,100 kg
Germany, Triptis
34,190 kg
Net weight
3,810 kg
Germany, Triptis
33,300 kg
Net weight
4,700 kg
Germany, Triptis
15,000 kg
Net weight
3,000 kg
Germany, Triptis
33,220 kg
Net weight
4,780 kg
Germany, Triptis
33,300 kg
Net weight
5,070 kg
Germany, Triptis
33,180 kg
Net weight
4,816 kg
Germany, Triptis
Germany, Schlierbach
Germany, Lahr
Germany, Mengen-Hohentengen
34,920 kg
Net weight
5,080 kg
Germany, Triptis
35,760 kg
Net weight
5,240 kg
Germany, Salzgitter
35,760 kg
Net weight
5,240 kg
Germany, Salzgitter
Functionality: fully functional
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
(Note: low drawbar load with 20 ft container)
Attention: The trailer may only be towed by towing vehicles that guarantee the effectiveness of the ABS!
Achsenkonfiguration: 3 axles
available in multiple units
Chassis
semi-trailer
container
Fine-grain steel welded construction
kingpin plate with replaceable 2" kingpin
Container fittings
1 x 20 ft
flush at the rear
24 tons
2-speed landing gear
single-sided operation
with semi-circular base and straight connection plate
with stroke equalization
2 support wedges with holder
Rear underrun protection
steel
Spray flaps at the rear
covering the entire width
Half-shell fenders
with anti-spray flaps according to EC
Storage box for fire extinguishers up to 6 kg
Fire extinguisher (ABC powder 6 kg)
incl. stainless steel drip tray in the center of the rear container crossbeam
approx. 290 mm wide
Axles + Suspension
BPW disc brake axles
with 430 mm disc diameter
"Axles/chassis laser-aligned" - reduces tire wear and fuel consumption
Axle spacing offset 1410/1310 mm (combined transport)
up to 44 tons total weight
1st axle
including forced lowering and start assist
activated by "pressing the brake pedal 3 times" (start assist is functional up to an axle load exceedance of 30% and up to a speed of max. 25 km/h)
Braking system
2-line pneumatic braking system
Color-coded line routing for easy servicing
Spring brake parking brake
2 tamper-proof coupling heads at the front
without connecting line
24-volt EBS
electronic braking system with EBS socket at the front
without connecting cable
with lift and lower valve
Vehicle - driving stability system
Axle load detection via EBS-CAN bus signal
for display on the dashboard in the cab
truck must be prepared accordingly
no truck installation (no calibrated scale)
Wheels and tires
385/55 R22.5"
manufacturer at the discretion of the manufacturer
Nwe Ajzbtniowr Ehxsk
Steel rims
factory silver
Electrical system
24 volts
multi-chamber lights
yellow LED lighting on the sides
2 white position lights at the front in LED
2 white/red marker lights at the rear
1 x 15-pin socket at the front
without connecting cable
Operating instructions
The specified total weight is technically possible
depending on the cargo
the total weight may not be reached while complying with the permissible axle/support and drawbar loads. (Poor driving and handling characteristics possible due to incorrect load distribution)
Country of registration/plates
Germany
with Dekra inspection and certificate (according to §13 EG - FGV)
24/7 service hotline
prepared for single-row license plate holder
Warning sign "A" for waste transport
foldable
ADR approval according to FL/AT with ADR warning sign at the rear
Contour marking with reflective strips according to ECE R 048
white on the sides and red at the rear
Paintwork
Frame RAL 2011 traffic orange
"10-year warranty against rust-through"
Support feet black coated
available in multiple units
